Name: | Curtain Wall Aluminium Profiles | Colors: | Green,blue,silver,darkgray,client's Requests |
---|---|---|---|
Surface Treatments: | Brushed Snow Sand,embossed Pattern,mirror,sandblast,random Pattern, | Quality Control: | GB/T19001-2016/ISO9001:2015 |
Main Markets: | Australia, Canada,New Zealand, Asia,Africa,Europe,USA,South America, Middle East | Guarantee: | 20 Years |
Materials: | 201/304/316 | Applications: | Hospital, Office Building, Residential House, Exhibition Center,Schools, Restaurants, Commercial Buildings |
High Light: | unitized curtain wall,fire rated curtain wall |
Custom Stainless Steel Curtain Wall For Building Metal Aluminium Alloy Curtain Wall
Stainless steel metal aluminium alloy full glass curtain wall
Stainless steel metal aluminium alloy photoelectric curtain wall
Main features of photoelectric curtain wall
It has the function of converting light energy into electrical energy. The key component for achieving photoelectric conversion is the photovoltaic template. The back of the photoelectric template can be lined in different colors to suit different architectural styles. Its special appearance has a unique decorative effect, which can give the building a distinctive era color.
The basic unit of the photoelectric curtain wall is a photovoltaic panel, and the photovoltaic panel is a battery array which is composed of a plurality of photovoltaic cells in series and parallel. The photovoltaic panel is assembled on the corresponding structure of the building curtain wall to form a solar photovoltaic power system. The columns and beams of the solar photovoltaic power system are generally made of aluminum alloy keels. The photoelectric template should be easy to replace.
Stainless steel metal aluminium alloy Intelligent breathing curtain wall
The curtain wall system consists of two curtain walls inside and outside. The inner curtain wall generally adopts a bright frame curtain wall, a movable window, or an access door; the outer curtain wall adopts a framed curtain wall or a point supporting glass curtain wall. A relatively closed space is formed between the inner and outer curtain walls, which greatly improves the insulation, heat insulation and sound insulation functions of the curtain wall.
The intelligent curtain wall is an extension of the breathing curtain wall. It is based on the intelligent building. The building supporting technology (warm, heat, light, electricity) is moderately controlled. The effective use of curtain wall materials and solar energy is effectively adjusted through computer networks. Indoor air, temperature and light save energy in the building's use and reduce the cost of production and building use. It includes the following parts: breathing curtain wall, ventilation system, shading system, air conditioning system, environmental monitoring system, intelligent control system and so on. The key to the intelligent breathing curtain wall lies in the intelligent control system, which is the whole process control system from the functional requirements to the control mode, from information acquisition to the execution of the command transmission mechanism. It involves the measurement of climate, temperature, humidity, air freshness, illuminance, heating, ventilation, air conditioning and sunshade and other operational status information collection and control, power system configuration and control, building computer control and many other factors.
Third, according to panel materials: glass curtain wall, stone curtain wall, artificial panel curtain wall, combined panel curtain wall

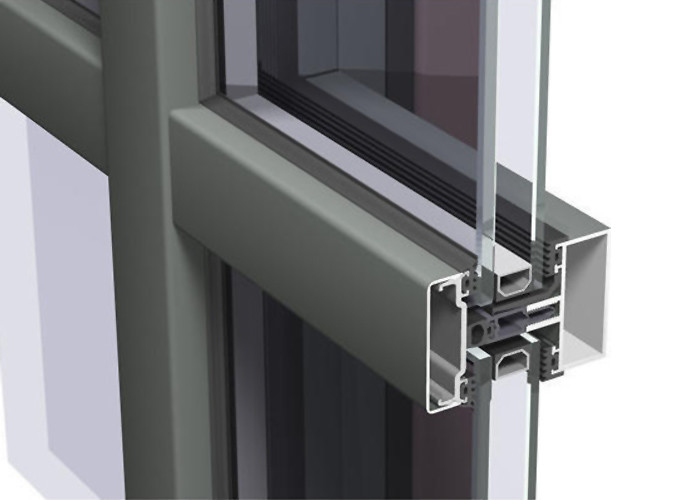

Stainless steel metal aluminium alloy unit curtain wall
Main features of the unit curtain wall:
1. Industrial production, high assembly precision, effective control of engineering construction cycle, obvious economic and social benefits.
2. The structure is sealed between the units, which is suitable for the displacement of the main structure and is suitable for super high-rise buildings and steel structure high-rise buildings.
3. It is not necessary to fill the sealant on site, and it is not affected by the weather.
4. It has excellent air tightness, water tightness, wind pressure deformation and plane deformation ability, which can achieve high environmental protection and energy saving requirements.
Stainless steel metal aluminium alloy curtain wall steel structure
Main features of curtain wall steel structure:
Advanced design: use the most advanced design methods to give full play to the mechanical properties of steel and save a lot of steel.
The structure is novel: the structure is exquisite, which greatly expands the building space and has a strong sense of architecture.
Quick installation: component standard, well-made, simple and fast construction and installation.
Complete technology: a complete technical system combined with building technology.

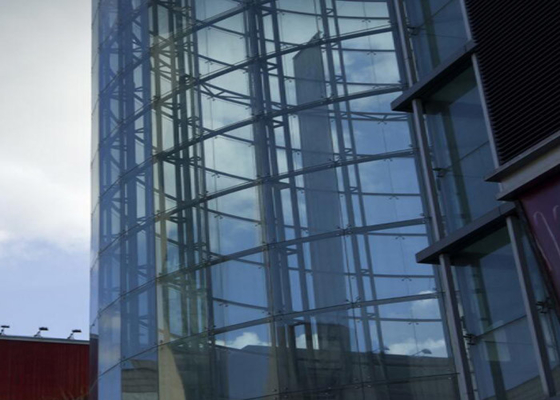

Stainless steel metal aluminium alloy point-supported curtain wall
1. The support structure is available in a variety of forms to meet the needs of architects and project owners for the effects of building structures and facades.
2. The structure is firm and beautiful, the components are compact and practical, and the metal structure can be integrated with the transparency of the glass, and the space inside and outside the building is harmonious and unified.
3. The glass and the connecting claw pieces are connected by ball joints, and have strong absorption and deformation ability.

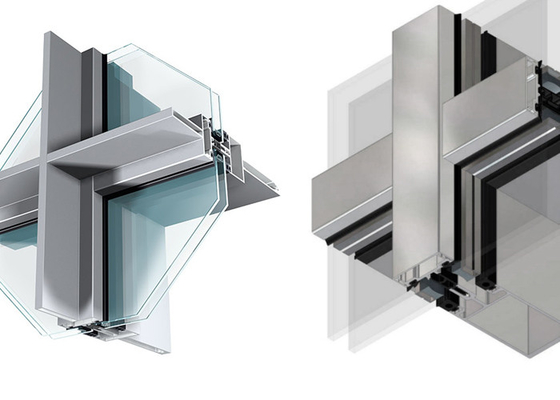

Stainless steel metal aluminium alloy component curtain wall
The component curtain wall is divided into:
Bright frame curtain wall: The frame of the metal frame is exposed on the frame supporting the curtain wall on the outer surface of the panel.
Hidden frame curtain wall: The frame of the metal frame is not exposed to the frame supporting curtain wall on the outer surface of the panel.
Semi-hidden frame curtain wall: The vertical or cross member of the metal frame is exposed to the frame supporting curtain wall on the outer surface of the panel.
Component curtain wall advantages:
1. The construction method is flexible and the process is mature, which is a form of curtain wall structure.
2. The main structure has strong adaptability, and the installation sequence is basically not affected by the main structure.
3. The sealant is used for material sealing, which has good water tightness and air tightness, good heat insulation, sound insulation and noise reduction capability, and has certain resistance to interlayer displacement.
4. The panel material unit assembly is factory-made, and the structural adhesive performance is guaranteed.
Some of our stainless steel curtain wall projects
Abu Dhabi International Airport
Supply Material Type: stainless steel erforated panel
