Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters

China Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters supplier
Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters supplier Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters supplier Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters supplier Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters supplier

Large Image :  Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters

Product Details:

Place of Origin: China
Brand Name: String One
Certification: GB/T19001-2016/ISO9001:2015,CE,SGS
Model Number: SO-SBS22

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Customized
Delivery Time: 25days
Payment Terms: L/C, T/T, Western Union,Payapl
Supply Ability: 500 square metres/ day
Contact Now
Detailed Product Description
Name: Stainless Steel Bus Shelter Colors: Blue, Green, Silver, Darkgray, Client's Requests
Surface Treatments: Brushed, Mirror,sandblast,random Pattern,snow Sand, Embossed Pattern Applications Hospital, Office Building, Residential House, Exhibition Center,Schools, Restaurants, Commercial Buildings Quality Control: GB/T19001-2016/ISO9001:2015
Main Markets: Europe,USA,South America, Middle East, Australia, Canada, New Zealand, Asia,Africa Guarantee: 20 Years
Applications: Road Beside Hospital, Office Building, Residential House, Exhibition Center,Schools, Restaurants, Commercial Buildings Materials: 201/304/316
High Light:

prefabricated bus shelters

,

portable bus stop shelters

Custom Stainless Steel Bus Stop Shelter With Canopy Rainshed And Sign Seats



Stainless steel bus personalized bus shelter

  • In addition, there are also some specially designed shelters, usually with a holistic design (such as the ceiling and the column is a whole), the components usually need to be factory-customized. Made of galvanized steel, it is painted with paint, and it is also sprayed with Buddha carbon.
  • In recent years, after continuous development and improvement, Suqian new window waiting booth has been made from stainless steel materials, and has been developed into galvanized steel pipes, galvanized plates, etc. or factory-made mass production.
  • The design and production of bus shelters are fully considered in coordination with the surrounding environment, using case design and batch production.
  • Recently, a “bus-integrated” bus stop has been developed. The bus stop and the bus shelter are combined to form a whole. It can accommodate 2-5 people for rain and sunshade. The floor space is only about 2 square meters. It is suitable for It is used on urban and rural bus lines where the roads are not wide and there are not many passengers.



Stainless steel bus shelters use materials

  • The column is mostly made of 304 stainless steel plate or stainless steel pipe with diameter of 114mm, 141mm, 133mm, galvanized steel pipe, and rectangular pipe column, common are 100mm*100mm, 120mm*120mm, 100mm*150mm, 150mm*150mm. The shelters made of stainless steel are easier to clean, while the shelters made of galvanized steel pipes are more beautiful and diverse. The ceiling is generally made of 304 stainless steel plate or galvanized plate (thickness 1.2mm or 1.5mm), and also used aluminum-plastic plate, sun plate, endurance plate (thickness 4.2-4.5mm), tempered glass, laminated glass and so on.
  • Stainless steel plates or galvanized sheets are the main materials for the bus shelters, but also aluminum profiles, but they are rare. Other main materials are PC endurance board and tempered glass, which are used on both sides of the light box, which is the transparent board outside the advertising screen; aluminum-plastic board, used under the ceiling, is the part that looks up; galvanized sheet, generally Used on the top of the ceiling and the main frame of the light box.



Stainless steel bus shelters regular size

  • The whole height is 2.5-2.8 meters;
  • The ceiling is about 1.5-2 meters wide;About 3-8 meters long;
  • Single light box 1700mm*3600mm;1000mm *1800mm;
  • Advertising screen 1500mm*3500mm;
  • Ceiling 1500mm*4500mm;
  • Height 2700mm - 2800mm.



Introduction to stainless steel bus shelter

  • Bus shelters are generally used in conjunction with bus stops. To facilitate the public to wait for passengers to wait for the sun, rain, etc., the traffic facilities built on the station, on both sides of the road or on the harbor-type bus stop of the green belt. Due to the increasing development of urban public transport, the bus shelter has developed into an indispensable part of the city, and the beautifully designed bus shelter has become a beautiful scenery of the city. The general shelter shed body is mainly composed of a ceiling, a column, a top bow, an advertising light box and a seat stool, and a partition plate is also used instead of the advertising light box.

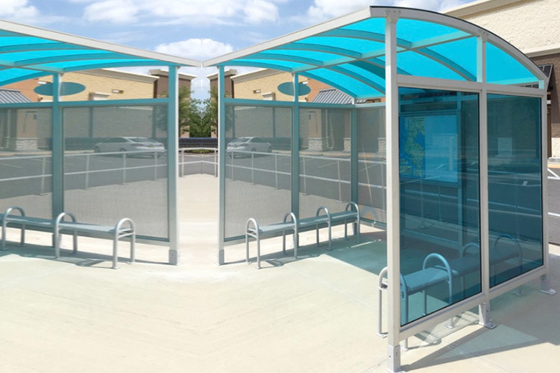

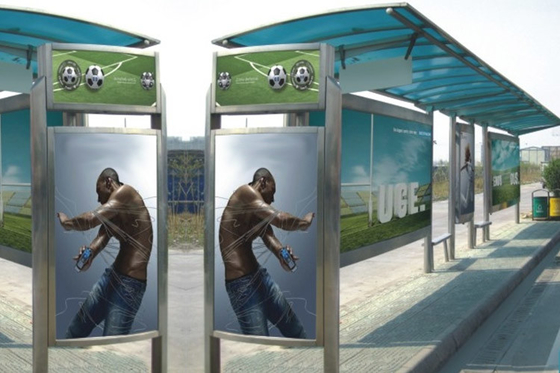

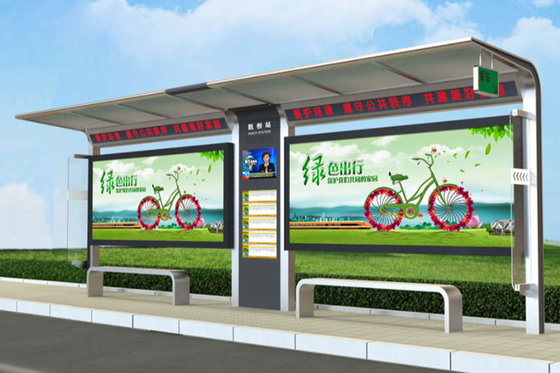

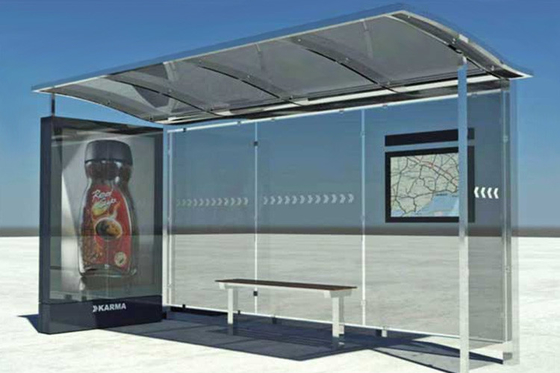

Some of our stainless steel projects



Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters

Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters

Personalized Stainless Steel Bus Shelter Holistic Design Whole Height 2.5-2.8 Meters
