201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM

Certification
Good quality Stainless Steel Curtain Wall for sales
Good quality Stainless Steel Curtain Wall for sales
I have been buying stainless steel products from String One for more than 8 years. They always provide the high quality products and good services. Especially,they have very professional sales persons and engineers who can support me so much for my business I always feel relaxed when I place the order to String One

—— Nathan Brown

I am a purchaser from a construction company. String One have desinged and produced a lot of unique stainless steel products for us. I am so impressed that String One have good design and R&D departments and very advanced production machines to ensure the quality of my orders. Thank String One , thank their teams.

—— Sara Miller

I'm Online Chat Now

201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM

China 201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM supplier
201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM supplier 201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM supplier 201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM supplier 201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM supplier

Large Image :  201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM

Product Details:

Place of Origin: China
Brand Name: String One
Certification: GB/T19001-2016/ISO9001:2015,CE,SGS
Model Number: SO-SB008

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Customized
Delivery Time: 25days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 500 square metres/ day
Contact Now
Detailed Product Description
Name: Stainless Steel Railing Colors: Blue, Darkgray,green, Silver,client's Requests
Surface Treatments: Brushed, Mirror,sandblast,random Pattern,snow Sand, Embossed Pattern Applications: Restaurants, Commercial Buildings,Hospital, Office Building, Residential House, Exhibition Center,Schools
Quality Control: GB/T19001-2016/ISO9001:2015 Main Markets: South America,Europe,USA,Middle East, Australia, Canada, New Zealand, Asia,Africa
Guarantee: 20 Years Materials: 201/304/316
High Light:

stainless steel handrail

,

stainless steel balustrade

Custom Stainless Steel Railing Handrail Guardrail Balustrade Fence For Building



About stainless steel handrails

  • Stainless steel handrails are practical and decorative protrusions that are usually placed on stairs, slabs, balconies, etc. They are hand-held members along the railings or slabs (top surface), which are used for walking.
  • Most of the materials are wooden, but also metal, plastic, terrazzo, marble and so on. Requires safety, firmness, aesthetics, smooth surface and no sharp edges and corners.
  • The form can be designed freely, but the width is based on the principle of comfortable hand grip, generally 40~60mm, the widest should not exceed 95mm, and it needs to be continuously set along the length of the ladder and the landing.



Stainless steel Handrail introduction



  • The stainless steel handrail is a member that is placed on the railing or the end of the slab and the side wall of the stairway for people to climb. Its form and material selection must meet the requirements of people's climbing and comfortable hand, as well as the requirements as a decorative component. Commonly used in hardwood, plastic, reinforced concrete, terrazzo, marble, metal profiles. There is no uniform standard for its form, and the specific method is determined by the detailed construction drawings.
  • Staircase stainless steel handrails are handrails that are built on stairs to ensure structural stability and safety. Stair railings are often supported by vertical railings that can be attached to either side of the column at one end of the stair or to a continuous intermediate column of the wall. There is a type of balustrade called a spiral railing. If the stair is rounded, the gooseneck is installed on the armrest (a vertical component that allows it to be attached to a higher armrest on the balcony or platform).



Stainless steel handrail form and construction

  • The indoor stair stainless steel handrail takes into account the comfort of people when holding, generally using wooden handrails, the size is related to the human body scale. The handrails of plastic handrails are also very good, but they are less durable and are not used much now. The metal handrails are excellent in durability and wear resistance, can be processed into various shapes, and are used in public buildings. The disadvantage is that the hand feel is poor when used in winter, and people generally do not want to touch it. Therefore, wooden handrails are used more often, and are generally made of hardwood with better wear resistance.
  • The installation method of stainless steel handrails is relatively simple. The wooden handrails are generally fixed on the flat steel at the top of the railings with wooden screws; the plastic handrails are clamped on the flat steel at the top of the railings with the softness; and the metal handrails can be directly welded to the metal bars. can.
  • Stainless steel handrails are generally installed on the side of the ladder and the suspended shaft of the ladder, but when the ladder is wider, the handrail is also required to be placed on the side of the wall, which is called the handrail against the wall. The height of the handrail against the wall is the same as the height of the handrail on the side of the dangling. The general installation method is to reserve a hole in the block wall every 1000 mm, the size is 100mm × 60mm x 60mm, install the dovetail iron foot, embed it with cement mortar or fine stone concrete, and then install the armrest on the iron. On the feet. If the wall is a concrete or reinforced concrete wall, it is necessary to pre-embed the iron and weld the iron foot to it. In order to ensure the convenience of grasping, the center line of the handrail should be no less than 100 mm away from the wall.
  • When the ladder is connected with the platform, or when the ladder is turning, because the height of the ladder is different, the starting position of the step is different, and the height of the railings of each section may be inconsistent. In order to ensure the continuous smoothness of the handrail, some treatment is required. The usual practice is to extend the armrests naturally to the platform, so that the armrests are connected at the same height. This will reduce the width of the platform; or step back the descending step to make the handrails smooth, but the length of the ladder is increased. step. When the ladder runs long and short, there is a horizontal railing on the platform, the height of which should not be less than 1050 mm. As shown on the right, there are several treatment methods for the height difference of the handrail at the turn of the step.

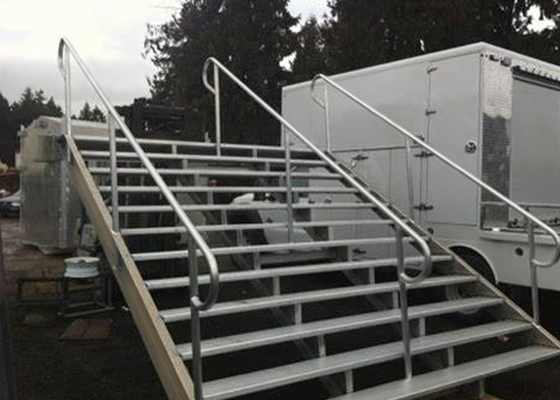

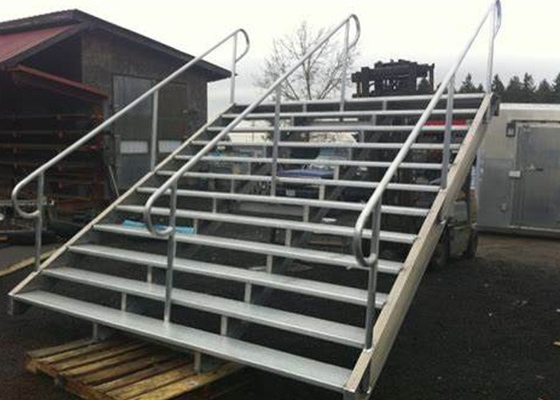

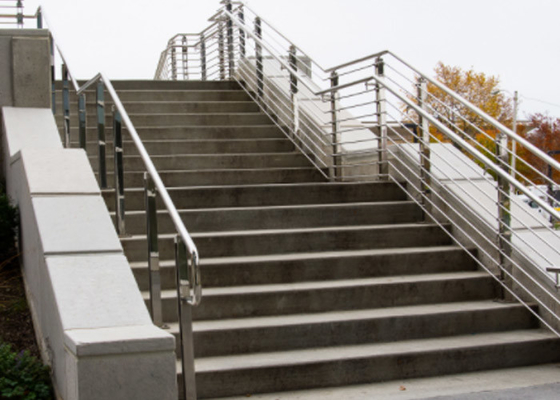

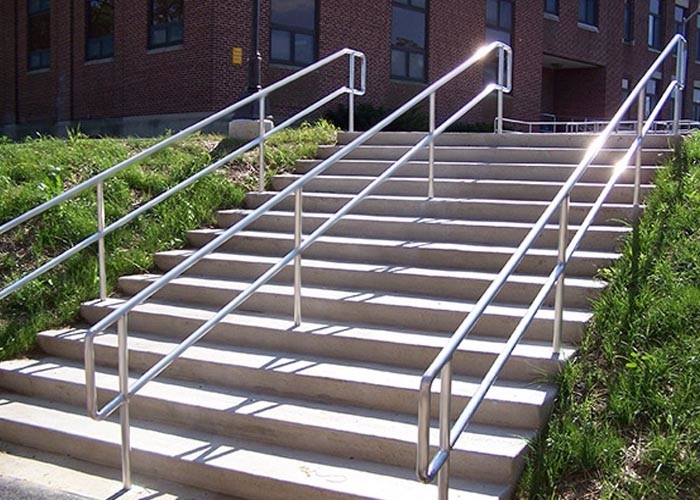

Some of our stainless steel railing handrail projects

201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM

201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM

201 / 304 / 316 Stainless Steel Railing Comfortable Hand Grip Width 40-60MM
